Diffraction project datasets IDP95710_5TPI
- Resolution: 1.47 Å
- Space group: C 1 2 1
Uniprot website for A6T8Z4
PDB website for 5TPI
PDB validation report for 5TPI
doi:10.18430/m35tpi
Project details

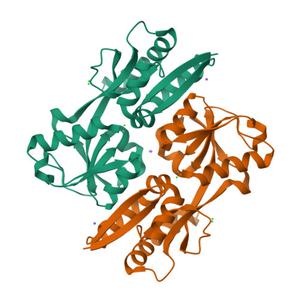

| Title | 1.47 Angstrom Crystal Structure of the C-terminal Substrate Binding Domain of LysR Family Transcriptional Regulator from Klebsiella pneumoniae. |
| Authors | Minasov, G., Wawrzak, Z., Sandoval, J., Evdokimova, E., Grimshaw, S., Kwon, K., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 93.76 x 40.23 x 68.21 |
| Unit cell angles [°] | 90.0, 129.4, 90.0 |

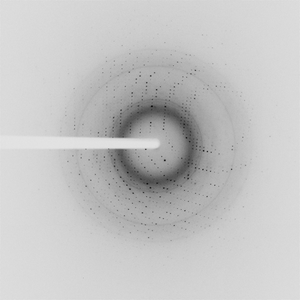

Dataset IDP95710-1.### details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -10.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2016-10-14 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
