Diffraction project datasets IDP90922_3S42
- Resolution: 1.45 Å
- Space group: P 21 21 21
Uniprot website for P58687
PDB website for 3S42
PDB validation report for 3S42
doi:10.18430/m33s42
Project details

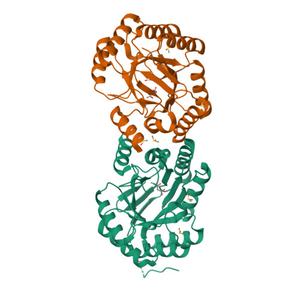

| Title | Crystal Structure of the 3-Dehydroquinate Dehydratase (aroD) from Salmonella enterica Typhimurium LT2 with Malonate and Boric Acid at the Active Site |
| Authors | Light, S.H., Minasov, G., Duban, M.-E., Halavaty, A.S., Krishna, S.N., Shuvalova, L., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 36.56 x 72.57 x 171.35 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

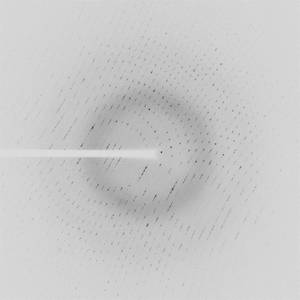

Dataset idp90922al.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 241.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2011-04-21 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
