Diffraction project datasets IDP90657_4hv4
- Method: Molecular Replacement
- Resolution: 2.25 Å
- Space group: P 21 21 21
PDB website for 4HV4
PDB validation report for 4HV4
doi:10.18430/m34hv4
Project details

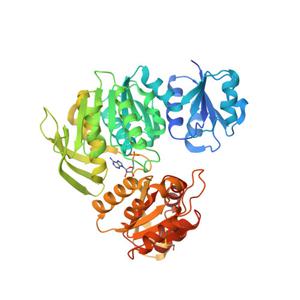

| Title | 2.25 Angstrom resolution crystal structure of UDP-N-acetylmuramate--L-alanine ligase (murC) from Yersinia pestis CO92 in complex with AMP |
| Authors | Halavaty, A.S., Minasov, G., Dubrovska, I., Winsor, J., Shuvalova, L., Peterson, S., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 66.53 x 78.02 x 183.30 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset idp90657e.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 290.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2012-10-25 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
