Diffraction project datasets IDP07537_6B8D
- Resolution: 1.78 Å
- Space group: C 2 2 21
Uniprot website for P43925
PDB website for 6B8D
PDB validation report for 6B8D
doi:10.18430/m36b8d
Project details

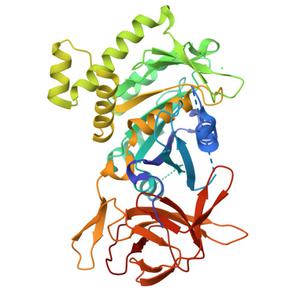

| Title | 1.78 Angstrom Resolution Crystal Structure of N-terminal Fragment (residues 1-405) of Elongation Factor G from Haemophilus influenzae |
| Authors | Minasov, G., Shuvalova, L., Dubrovska, I., Kiryukhina, O., Grimshaw, S., Kwon, K., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 84.82 x 88.49 x 130.28 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

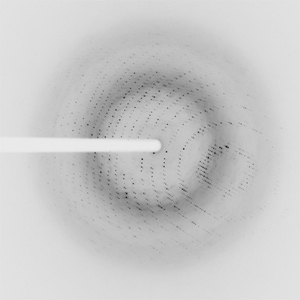

Dataset idp07537-b_1_2_3.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-08-08 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
