Diffraction project datasets IDP04389_4gd5
- Method: SAD
- Resolution: 1.7 Å
- Space group: P 1 21 1
PDB website for 4GD5
PDB validation report for 4GD5
doi:10.18430/M34GD5
Project details

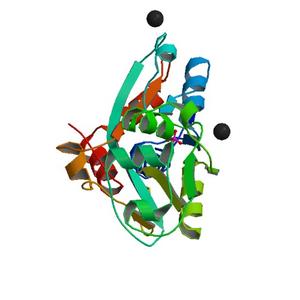

| Title | X-ray Crystal Structure of a Putative Phosphate ABC Transporter Substrate-Binding Protein with Bound Phosphate from Clostridium perfringens |
| Authors | Brunzelle, J.S., Wawrzak, Z., Onopriyenko, O., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 55.89 x 73.30 x 56.42 |
| Unit cell angles [°] | 90.0, 102.1, 90.0 |

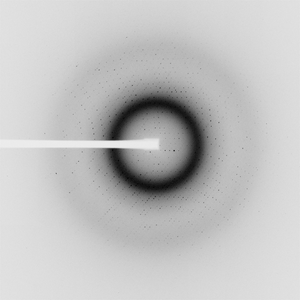

Dataset IDP04389-1.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.75 |
| Wavelength [Å] | 0.97856 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

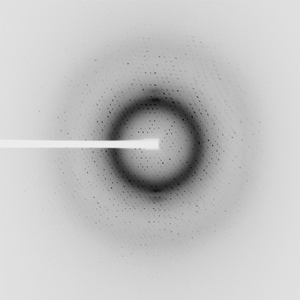

Dataset IDP04389-1b.### details
| Number of frames | 140 (1 - 140) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 160.0 |
| Wavelength [Å] | 0.97856 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
