Diffraction project datasets IDP02095_3TNO
- Resolution: 1.65 Å
- Space group: P 21 21 21
Uniprot website for Q5NFX0
PDB website for 3TNO
PDB validation report for 3TNO
doi:10.18430/m33tno
Project details
| Title | 1.65 Angstrom Resolution Crystal Structure of Transaldolase B (TalA) from Francisella tularensis in Covalent Complex with Sedoheptulose-7-Phosphate |
| Authors | Light, S.H., Minasov, G., Halavaty, A.S., Shuvalova, L., Papazisi, L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 56.32 x 74.09 x 165.42 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

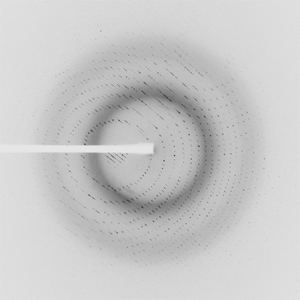

Dataset idp02095g.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 225.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2011-08-17 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
