Diffraction project datasets IDP01705_3n5m
- Method: SAD
- Resolution: 2.05 Å
- Space group: P 1 21 1
PDB website for 3N5M
PDB validation report for 3N5M
doi:10.18430/m33n5m
Project details

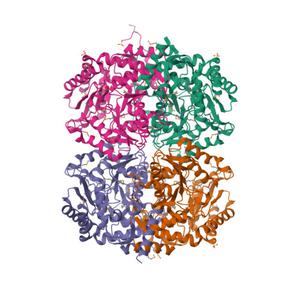

| Title | Crystals structure of a Bacillus anthracis aminotransferase |
| Authors | Anderson, S.M., Wawrzak, Z., DiLeo, R., Onopriyenko, O., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 62.41 x 176.18 x 80.06 |
| Unit cell angles [°] | 90.0, 94.5, 90.0 |
Dataset idp01705-n1_A.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 240.0 |
| Oscillation width [°] | 0.60 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-02-12 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp01705-n1_B.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 240.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-02-12 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
