Diffraction project datasets HepyC_19480_a_B11_6mtz
Project details
Title |

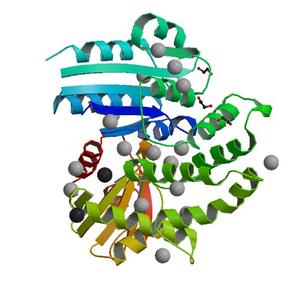

Crystal structure of an uncharacterized protein from Helicobacter pylori G27 |
Authors |
Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
R / Rfree |
0.18 / 0.23 |
Unit cell edges [Å] |
60.73 x
66.74 x
200.47
|
Unit cell angles [°] |
90.0,
90.0,
90.0
|

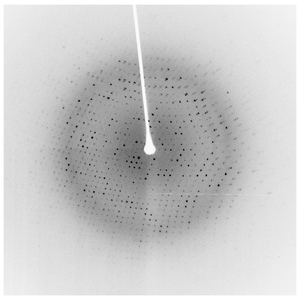

Dataset 301766f3_x_####.img details
Number of frames |
720 (1 - 720) |
Distance [mm] |
55.0 |
Oscillation width [°] |
0.25 |
Omega [°] |
-90.0 |
Wavelength [Å] |
1.54178 |
Equipment |
HOME_SOURCE
at HOME_SOURCE (Home Source)
|

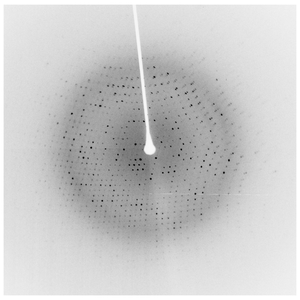

Dataset 301766f3_y_####.img details
Number of frames |
720 (1 - 720) |
Distance [mm] |
55.0 |
Oscillation width [°] |
0.25 |
Omega [°] |
-90.0 |
Kappa / Chi [°] |
10.0 |
Wavelength [Å] |
1.54178 |
Equipment |
HOME_SOURCE
at HOME_SOURCE (Home Source)
|
