Diffraction project datasets 3uw3

  • Method: Molecular Replacement
  • Resolution: 1.55 Å
  • Space group: P 21 21 21
Download all images (2.9 GB)

PDB website for 3UW3
PDB validation report for 3UW3

doi:10.18430/M33UW3

Project details

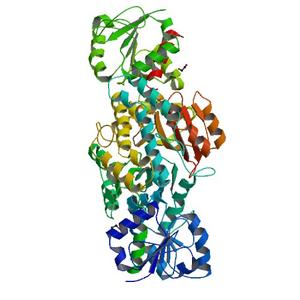

Title Crystal Structure of an Aspartate-Semialdehyde Dehydrogenase from Burkholderia Thailandensis
Authors Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C.
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 76.45 x 103.10 x 106.97
Unit cell angles [°] 90.0, 90.0, 90.0

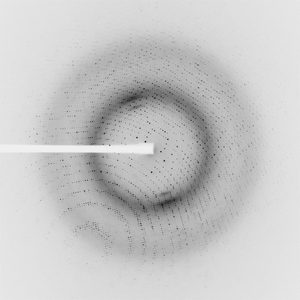

Dataset fss3-4_test.### details

Number of frames 380 (1 - 380)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 145.0
Wavelength [Å] 0.97856
Experiment Date 2011-10-28
Equipment 21-ID-G at APS (Advanced Photon Source)
