Diffraction project datasets 3u7j

  • Method: Molecular Replacement
  • Resolution: 2.1 Å
  • Space group: C 1 2 1
Download all images (501.0 MB)

PDB website for 3U7J
PDB validation report for 3U7J

doi:10.18430/M33U7J

Project details

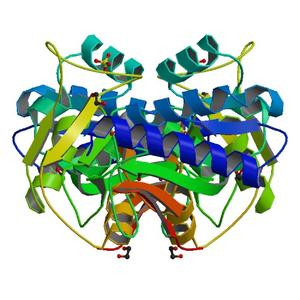

Title Crystal structure of Ribose-5-phosphate isomerase A from Burkholderia thailandensis
Authors Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C.
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 80.09 x 73.47 x 52.01
Unit cell angles [°] 90.0, 128.1, 90.0

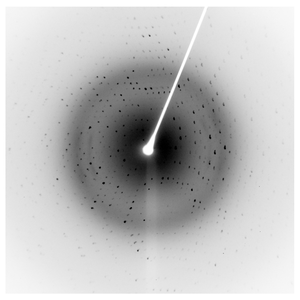

Dataset 225985d11_x####.img details

Number of frames 180 (1 - 180)
Distance [mm] 50.0
Oscillation width [°] 1.00
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

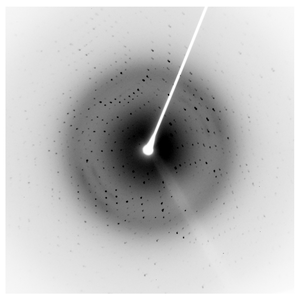

Dataset 225985d11_y####.img details

Number of frames 180 (1 - 180)
Distance [mm] 50.0
Oscillation width [°] 1.00
Omega [°] -90.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
