Diffraction project datasets 3u0f

  • Method: Direct phasing from previous structure
  • Resolution: 1.25 Å
  • Space group: C 1 2 1
Download all images (1.6 GB)

PDB website for 3U0F
PDB validation report for 3U0F

doi:10.18430/M33U0F

Project details

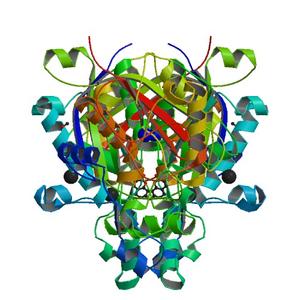

Title The structure of Beta-ketoacyl synthase from Brucella melitensis bound to the fragment 7-hydroxycoumarin
Authors Clifton, M.C., Abendroth, J., Seattle Structural Genomics Center for Infectious Disease
R / Rfree 0.12 / 0.13
Unit cell edges [Å] 78.56 x 83.25 x 73.81
Unit cell angles [°] 90.0, 121.2, 90.0

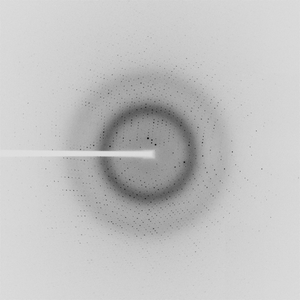

Dataset blue5.### details

Number of frames 220 (1 - 220)
Distance [mm] 150.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97856
Experiment Date 2010-11-04
Equipment 21-ID-G at APS (Advanced Photon Source)
