Diffraction project datasets 3oq8

  • Method: Molecular Replacement
  • Resolution: 2.25 Å
  • Space group: P 21 21 21
Download all images (556.9 MB)

PDB website for 3OQ8
PDB validation report for 3OQ8

doi:10.18430/M33OQ8

Project details

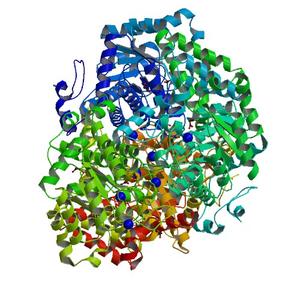

Title Crystal structure of isocitrate lyase from Brucella melitensis, bound to the product mimic malonate
Authors SSGCID, Gardberg, A., Edwards, T., Staker, B., Stewart, L.
R / Rfree 0.15 / 0.20
Unit cell edges [Å] 77.50 x 136.03 x 181.77
Unit cell angles [°] 90.0, 90.0, 90.0

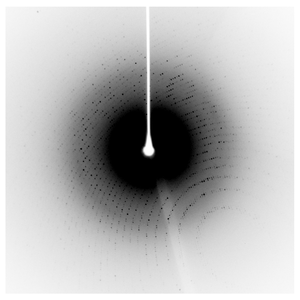

Dataset 217291h3b_x####.img details

Number of frames 240 (1 - 240)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 15.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

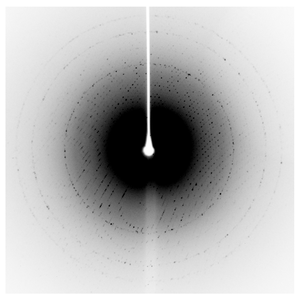

Dataset 217291h3b_x####.img details

Number of frames 180 (301 - 480)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -45.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
