Diffraction project datasets 3oec

  • Method: Molecular Replacement
  • Resolution: 1.95 Å
  • Space group: C 1 2 1
Download all images (624.9 MB)

PDB website for 3OEC
PDB validation report for 3OEC

doi:10.18430/M33OEC

Project details

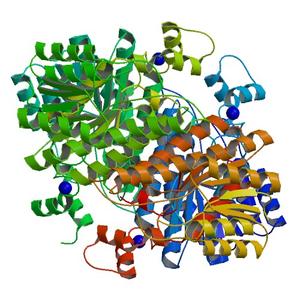

Title Crystal structure of carveol dehydrogenase from Mycobacterium thermoresistibile
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 67.86 x 120.57 x 134.56
Unit cell angles [°] 90.0, 94.1, 90.0

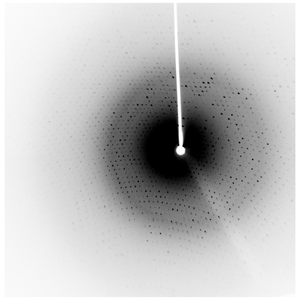

Dataset 216496e11_a####.img details

Number of frames 358 (1 - 358)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -100.0
Kappa / Chi [°] 30.0
Phi [°] 135.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

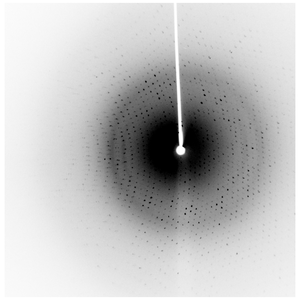

Dataset 216496e11_a####.img details

Number of frames 126 (401 - 526)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] 2.0
Kappa / Chi [°] 15.0
Phi [°] 60.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
