Diffraction project datasets 3lr0
- Method: SAD
- Resolution: 1.9 Å
- Space group: P 32 2 1
PDB website for 3LR0
PDB validation report for 3LR0
doi:10.18430/M33LR0
Project details

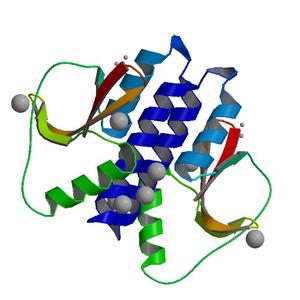

| Title | Periplasmic domain of the risS sensor protein from Burkholderia pseudomallei, iodide phased at low pH |
| Authors | Edwards, T.E., Abendroth, J., Staker, B.L., Phan, I., Myler, P., Stacy, R., Stewart, L., Miller, S.I., Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 58.36 x 58.36 x 75.69 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

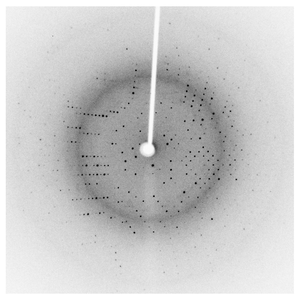

Dataset 206239a1_1MKI_v####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

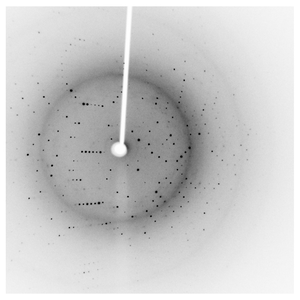

Dataset 206239a1_1MKI_z####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -80.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
