Diffraction project datasets 3k9g

  • Method: SAD
  • Resolution: 2.25 Å
  • Space group: P 43 21 2
Download all images (4.2 GB)

PDB website for 3K9G
PDB validation report for 3K9G

doi:10.18430/M33K9G

Project details

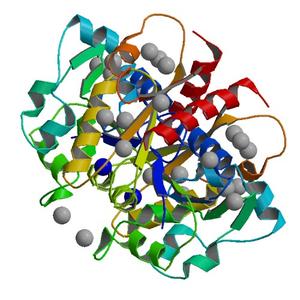

Title CRYSTAL STRUCTURE OF A PLASMID PARTITION PROTEIN FROM BORRELIA BURGDORFERI AT 2.25A RESOLUTION, iodide soak
Authors Abendroth, J., Gardberg, A.S., Robinson, J.I., Christensen, J.S., Staker, B.L., Myler, P.J., Stewart, L.J., Edwards, T.E.
R / Rfree 0.22 / 0.27
Unit cell edges [Å] 55.81 x 55.81 x 200.90
Unit cell angles [°] 90.0, 90.0, 90.0

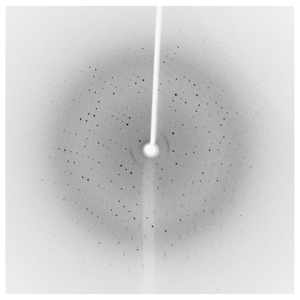

Dataset 204641a10_05-10MKI_x####.img details

Number of frames 1440 (1 - 1440)
Distance [mm] 60.0
Oscillation width [°] 0.25
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
