Diffraction project datasets 2648472_2qg3
- Method: MAD
- Resolution: 1.95 Å
- Space group: P 42
PDB website for 2QG3
PDB validation report for 2QG3
doi:10.18430/M32QG3
Project details

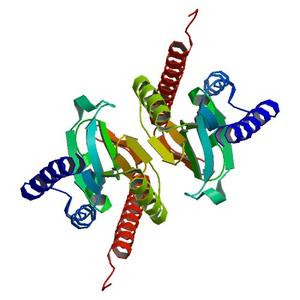

| Title | CRYSTAL STRUCTURE OF A TYW3 METHYLTRANSFERASE-LIKE PROTEIN (AF_2059) FROM ARCHAEOGLOBUS FULGIDUS DSM 4304 AT 1.95 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 59.33 x 59.33 x 109.10 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

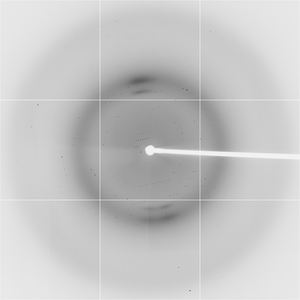

Dataset T3337_1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 217.0 |
| Wavelength [Å] | 0.97911 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

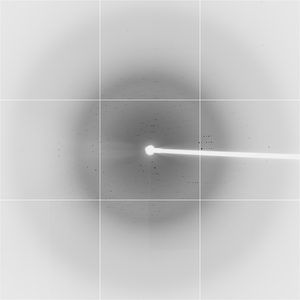

Dataset T3337_2_###.img details
| Number of frames | 30 (1 - 30) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 307.0 |
| Wavelength [Å] | 0.97911 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
